Loading Dock Lifts & In-plant Handling Equipment
NORDOCK® DOCK-LIFT™ Series, MAST-GUIDE™ Series, and Other Lift Products
If you are looking for a great solution for your dock lift and other dock equipment, we have some great products for you. Speed-Tech Equipment carries both the DOCK-LIFT series and MAST-GUIDE series of dock lifts. They are both manufactured by Nordock Inc. and are known for being both reliable and dependable. These dock lifts have complete hydraulic power that is regulated by the simple push of a button. The DOCK-LIFT series scissors lifts are the ultimate accessory when it comes to accessibility, dependability, and strength.
With complete hydraulic power regulated by the push of a button, the DOCK-LIFT™ Series Scissor Lifts are the ultimate in accessibility, dependability, and strength.
The NORDOCK® Scissor Lift is available in standard deck sizes ranging from 6’ wide x 8’ long to 8’ wide x 20’ long and has a lift capacity of 4,000 to 20,000 lbs.
NORDOCK® Industrial Series Mechanical Levelers have an established record proving their ease of operation, strength, and reliability. This dock lift Series features soft activation and easy release initiation. They are also equipped with a simple release hold-down with a limitless float and full yielding walkout lip extension that provide for smooth, proficient operation. In addition, this Series includes an exclusive lip lug and header plate design.
The foremost standard for the NORDOCK® Heavy Metal Series Mechanical Levelers is their strength and reliability in order to provide matchless service. They are designed to feature simple operation, dependability, and strength with an easy release. Its standard features include NORDOCK’s exclusive auto-sensing holdown and a full yieldable walk-down lip extension and also comes equipped with more customary performance features than other comparable products.
DOCK-LIFT™ Series
With complete hydraulic power regulated by the push of a button, the DOCK-LIFT™ Series Scissor Lifts are the ultimate in accessibility, dependability, and strength.
The NORDOCK® Scissor Lift is available in standard deck sizes ranging from 6’ wide x 8’ long to 8’ wide x 20’ long and has a lift capacity of 4,000 to 20,000 lbs.
Standard features include a hinged bridge, barrier chains, beveled toe relief, handrails, and fall protection velocity fuses. The power unit is a remote-mounted assembly that has a fully enclosed fan-cooled motor, relief valve, valve manifold, gear pump, oil-filled reservoir, and filters.
Dock Lift Features
- Cam follower rollers with high tensile
- Heavy-duty hydraulic cylinders with chromed rod and velocity fuse
- Superior design with self-aligning spherical bearings and lifetime
- Perimeter 8” beveled side guards or optional electric stops
- Non-slip checker plate deck and lip
- Weatherproof push button controls with retractable cord
- Two removable handrails with kick plate and restraint chains on open ends
- Integral maintenance support
- Optional safety yellow deck and handrails
Optional Equipment
- Keyed lock out and disconnects
- Longer, spring assisted, and aluminum bridges
- Electrical perimeter stops
- In motion indicators
- Roll off stops
- Roller and accordion curtains
- Upper travel stop switch
Check out our other dock lift products here.
MAST-GUIDE™ Series
With complete hydraulic power regulated by the push of a button, the DOCK-LIFT™ Series Scissor Lifts are the ultimate in accessibility, dependability, and strength.
The NORDOCK® MAST-GUIDE Series is available in standard deck sizes ranging from 6’ wide x 8’ long to 8’ wide x 20’ long and has a lift capacity of 4,000 to 20,000 lbs.
Standard features include a hinged bridge, barrier chains, beveled toe relief, handrails, and fall protection velocity fuses. The power unit is a remote-mounted assembly that has a fully enclosed fan-cooled motor, relief valve, valve manifold, gear pump, oil-filled reservoir, and filters.
Features
- Cam follower rollers with high tensile
- Heavy-duty hydraulic cylinders with chromed rod and velocity fuse
- Superior design with self-aligning spherical bearings and lifetime
- Perimeter 8” beveled side guards or optional electric stops
- Non-slip checker plate deck and lip
- Weatherproof push button controls with retractable cord
- Two removable handrails with kick plate and restraint chains on open ends
- Integral maintenance support
- Optional safety yellow deck and handrails
Optional Equipment
- Keyed lock out and disconnects
- Longer, spring assisted and aluminum bridges
- Electrical perimeter stops
- In motion indicators
- Roll off stops
- Roller and accordion curtains
- Upper travel stop switch
Dock Lifts & Other Products
Speed-Tech Equipment also offers other new and used NORDOCK® Lift Products. These include the TRUCK-LIFT™ Series, the TILTER™ Series, the PLANT LIFT™ Series, ERGONOMIC™ Series, Custom Lifts, and the PLATFORM™ Series Double Scissor Lift.

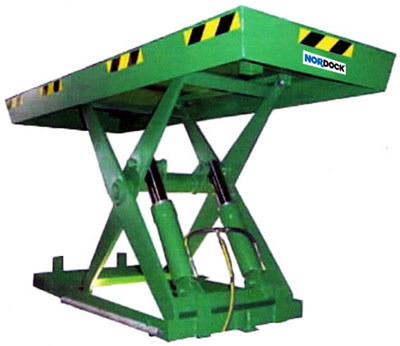

PLANT LIFT™ Series
Features
- High performance cylinders with guide bearings and scraper
- Spherical bearings and high dynamic
- Lock rings on pins
Options
- Manual or powered turntable
- Central greasing system
- Photo eye and positioning sensor
- Portability
- Tilting deck
- Numerous custom performance and safety options available
TILTER™ Series
Standard Features
- Internal power unit and controls
- Full width piano hinge with zinc plated rod
- High performance cylinders with guide bearings and scrapers
- Any width, length and tilt angle to meet your needs
Options
- Numerous custom performance and safety options available
- Portability
- Foot pedal operator
- Photo eye and positioning sensor

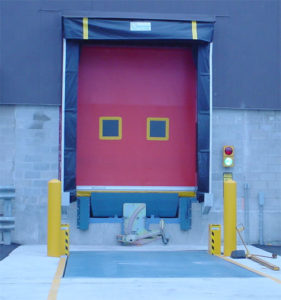

NORDOCK® TRUCK-LIFT™ Series Hydraulic Truck Leveler
- Lifts all types of trailers to proper dock height for optimum service
- Synchronized lifting cylinders keep deck level, even with off-center loads
- Spherical bearings on cylinders alleviate internal stresses for longer life
- 60,000 lb. lift capacity
- 5 h.p. remote mounted power unit with a hose, oil, and fittings included
- Pit and surface mounted units available
- Lug style hinge assembly with 75,000 P.S.I. hardened chrome pins
- NEMA 12 controls
- Easy access side mounted cylinders with velocity fuse on each
- 50,000 – 55,000 P.S.I. yield steel tread plate
- 10’ wide x 14’, 16’, and 20’ lengths
PLATFORM™ Series-Double Scissor Lift
1,000 to 20,000 lb. capacity with up to 16′ of travel
Model DS Features
- Self aligning spherical bearings and lifetime lubricated bushings at all pivot points
- Cam follower rollers with high tensile needle bearing construction
- High performance cylinders with chrome rod, guide bearing, scraper and safety velocity fuse
- Guard rails with kick plate on non-access sides and chains with the snap release on access sides
- Over-travel limit switch
- Remote mounted power unit supplied with oil and high pressure hose
- Motor controller with dust tight enclosure and reduced voltage to water tight push button stations
- Checker plate deck surface

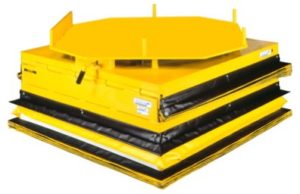

Nordock Ergonomic Series
- Heavy-duty hydraulic cylinders with chromed rod and velocity fuse
- Superior design with self-aligning spherical bearings and lifetime lubricated bushings at all pivot points
- Choice of the remote or self-contained power unit – single or three phase
- Cam follower rollers with high tensile needle bearing construction
- Turntable with available position detents, handles, and safety locks
- High tensile solid steel scissor legs
- 1,000 to 10,000 pound lift capacities
- 45° degree of tilt with power down
- 24” to 56” vertical travel
- Any combination of lift, tilt and rotate
- Weatherproof push button control
- Air or air-hydraulic units available – powered with compressed air
NORDOCK Custom Lift
Inverter
Custom 180 degree positioning platform with clamp and powered 90 degree on/off load conveyors.
Air/Hydraulic Lift
This lift is an air over hydraulic powered custom lift with a 16,000 lb. capacity.
Container Handling Lift
The 15,000 lb. container handling lift has a load cell sand digital weight scale and a caster deck.
Custom Bin Dumper
This Custom Lift features a custom bin dumper and hopper with a manual chute control powered roller conveyor with a 10,000 lb. capacity lift with a reversing roller conveyor.
Steel Coil Upender
The Steel Coil Upender has a 10,000 lb. capacity with a “V” deck.
High Cycle Stacker
This lift is a custom 50,000 lb. capacity high cycle stacker lift with over a 10’ vertical travel. Its features include specialized controls, a central lubrication system, and stress relieving spherical bearings.
Power Roller Conveyor
The Power Roller Conveyor is a 10,000 lift with a reversing roller conveyor.
