Loading Dock Shelters

NORDOCK® Dock Shelters: FF FoamFrame™ Series, DS Series Rigid Frame, RF RetractaFrame Dock Shelters

Speed-Tech Equipment sells new and used NORDOCK® Dock Shelters consisting of the FF FoamFrame™ Series, DS Series Rigid Frame, and RF RetractaFrame™ Dock Shelters. The FF FoamFrame™ Series feature a foam sided shelter with superior sealing capability. The DS Series Rigid Frame Dock Shelter offers full access for a wide range of trailer widths and heights. The RF RetractaFrame™ Dock Shelter is built to yield when hit by an off center trailer.

Nordock Dock Leveler
used loading dock equipment

FF Foam Frame Series Dock Shelter

DS Series Truck Shelter

DS Series Truck Shelter​

RF Series Truck Shelter

RF Series Truck Shelter

NORDOCK® FF FoamFrame Series Dock Shelter

A Foam Sided Shelter with Superior Sealing Capability



The NORDOCK® FoamFrameTM Dock Shelter’s memory core form sides can eliminate damage caused by off center loading. The stiffeners in its vertical curtains provide a maximum weather-tight seal, unobstructed access to the trailer, and a safer dock environment. In addition to stiffeners, the head curtain also contains wind retention straps and protective corner reinforcement pleats. Energy loss between the side members and the side members is reduced by the standard bottom corner pads. The rigid head frame is sloped to increase water drainage while the transparent cover allows in natural light.

FF FoamFrame™ Series Dock Shelter Features:

99% memory foam core for extended life

  • Polyurethane foam side frames with double stitched Velcro attached vertical curtains containing fiberglass stiffeners provide maximum weather-tight seal provide a maximum weather-tight seal
  • Double stitched seams with high strength thread
  • 36” head curtain contains fabric stiffeners, protective corner reinforcement pleats, Velcro splits and wind retention straps
  • Pressure treated superior grade lumber backing with galvanized steel mounting hardware
  • 18” pad projection with 24” and 30” options
  • Raked header with translucent fiberglass allows for water drainage and natural light
  • Bottom draft pads seal opening
  • Multiple fabric options, including high tear abrasions fabrics like WearTough® WT-90

FF FoamFrame™ Series Dock Shelter Options:

  • TerminatorTM trailer door gap steel
  • Reinforced edge on vertical panels
  • Tough-SplitTM head curtain
  • Tapered side for incline/decline approach
  • Galvanized steel framing for header and side frame backing
  • 40 oz. Vinyl or WT-90 Fabrics
  • Higher, wider, and increased projection units
  • Longer head curtains

FF FoamFrame™ Series Dock Shelter Accessories:

  • Fall-StopTM barrier gate
  • Truck-Lock® vehicle restraint
  • Steel spring, steel face, laminated and molded bumpers
  • Galvanized steel canopies
  • Dock levelers
  • Wheel chocks
  • Loading dock lights

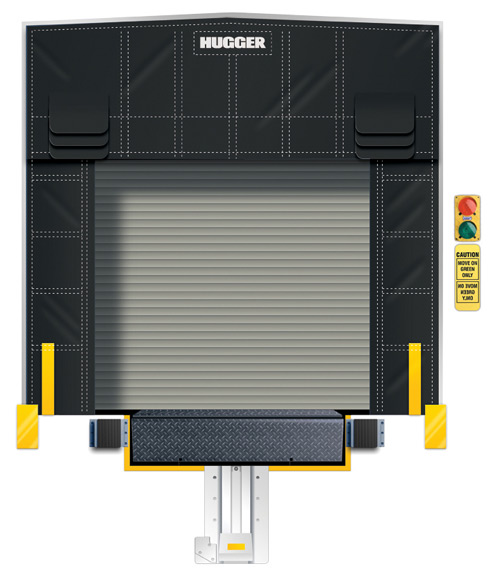

NORDOCK® DS Series Truck Shelter

A Rigid Frame Dock Shelter for a Wide Range of Trailer Widths and Heights

The NORDOCK® DS Series Dock Shelter provides complete access to the widest range of trailer widths and heights as well as full dock protection. This Series also features high wear resistant fabric with double lock-stitched seams, 36” head curtain with stiffeners, wind retention straps, bottom corner draft pads, and protective corner reinforcement pleats. The transparent top of the raked head permits water drainage in addition to providing natural light.

DS Series Features:

  • Multiple fabric options, including high tear abrasion fabrics like WEARTOUGH® wt-90
  • 36” head curtain contains fabric stiffeners, protective corner reinforcement pleats and wind retention straps
  • Double-stitched seams with high strength thread
  • Vertical panels are double-stitched fabric with stays
  • Raked header with transparent top allows for water drainage and natural light
  • Superior grade pressure treated lumber framing
  • Draft pads seal bottom
  • Steel side frame guards and galvanized steel mounting hardware included
  • 24” yellow guide stripes

DS Series Options:

  • Reinforced edge on vertical panels
  • Tough-Split™ head curtain
  • Tapered sides for incline/decline approach
  • Higher, wider, and increased projection units
  • Terminator trailer gap door gap
  • Painted or galvanized steel frame
  • Vinyl sides
  • 40 oz. Vinyl or WT-90 fabrics
  • Longer head curtains

DS Series Accessories:

  • Fall-Stop™ barrier gate
  • Truck-Lock® vehicle restraint
  • Dock levelers
  • Steel spring, steel face, laminated, and molded bumpers
  • Galvanized steel canopies

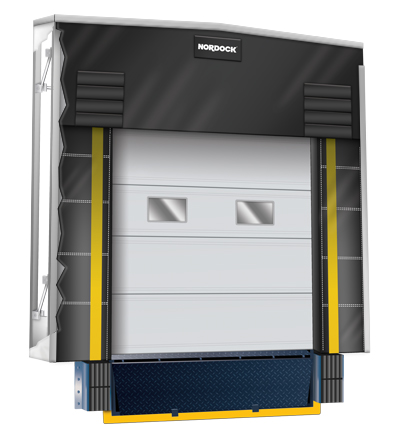

NORDOCK® RF Series Truck Shelter

Built to yield when hit by an off center trailer

During loading operations, unobstructed access to the back of the trailer is provided by the multipurpose RetractaFrame™ Series Dock Shelter. When hit by an off-center trailer, its rugged steel frame is built to yield so that shelter and dock wall damage is prevented. This RF Series features a sloped header, multiple fabric choices with double lock stitched seams, and 36” drop curtain with protective corner wear flaps and retention straps. Energy loss is reduced between the side members and curtain by the bottom corner straps.



RF Series Dock Shelter Features:

  • Retracting frame dock shelter built to yield when hit by an off-center trailer
  • Double-stitched seams and high strength thread for extended life
  • Retractable gravity-forward steel frame
  • Multiple fabric choices including 50 oz. WearTough WT-90 fabric
  • Double-stitched vertical panels UV treated 4 ply fabric and fiberglass stays
  • Sloped header for drainage and a 36” drop curtain with protective corner wear flaps and wind retention straps
  • White vinyl side frame cover for light transmittal
  • Overall standard dimensions 11’6” wide x 11’ high with standard 24” projection
  • Replaceable bottom corner draft pads
  • 24” Yellow guide stripes

RF Series Dock Shelter Options:

  • 40 oz. Vinyl or WT-90 Fabrics
  • Tough-Split™ head curtain
  • Taller, wider, and extra projection
  • Terminator™ trailer gap seal
  • Longer head curtain
