Hydraulic Dock Levelers
NORDOCK® Hydraulic Dock Levelers
Constructor™, Dual-Duty™, Performa™, Heavy-Duty™, Super-Duty™, And Barrier™ Hydraulic Dock Series
The NORDOCK® Hydraulic Dock Levelers consist of the Constructor™, Dual-Duty™, Performa™, Heavy-Duty™, Super-Duty™, and Barrier™ Series. These various hydraulic dock leveler series are designed with a patented system that utilizes only one hydraulic cylinder to raise the deck and extend the lip by a simple push of a button. All carry the NORDOCK® guarantee to outperform.
NORDOCK® designed the Constructor™ Series Hydraulic Dock Levelers exclusively for the construction industry. This cost effective series was created with heavy-duty hydraulics and developed for strength, dependability, simple operation, and easy installation. Other features include an open-frame design for easy cleaning of the pit area, a patented dual function cylinder, and a simple one-step push button control.
Dual Duty Series
The Dual-Duty™ Series Hydraulic Dock Levelers uses the patented system of a single hydraulic cylinder to raise the deck and extend the lip. This system makes it easy to operate while still being suitable for the toughest dock conditions. Also featured in this series is a continuous rear hinge that provides up to a 4” of side-to-side tilt with no pinch points. Heavy-duty hydraulics, quick cycle time, a patented dual function cylinder, and a full width rear hinge rod are also included.
more information coming soon
Performa Series
Designed for the most challenging applications, the Performa™ Series Hydraulic Dock Levelers is the best choice for demanding loading docks. The heavy-duty hydraulics, the patent-pending lip activation, and the single push button control provide a significant lifetime cost of ownership savings. The standard features also include a full operating range telescoping side guards, an integral lip and deck maintenance supports, telescoping side guards, two heavy-duty dock bumpers, safety black and yellow side skirt labels, and night security locks.
more information coming soon
Heavy Duty Series
The Heavy-Duty™ Series Hydraulic Dock Levelers provide maximum strength by a platform that is a unitized welded structure with continuous welds at the beam, lugs, and header plates. Their hydraulic power provides smooth, efficient performance. Other features include a easy one-step push button control, heavy-duty cylinders with non-adjustable velocity fuse, a continuous rear hinge with seven solid steel frame support, and integral maintenance supports.
more information coming soon
Barrier Series
The Barrier™ Series Hydraulic Dock Levelers are powerful hydraulic levelers with a safety barrier lip to prevent accidental fall-off. Their hydraulic power provides smooth, efficient performance with a simple, one-step push button control. In addition to its immobile barrier lip, this series also features heavy-duty cylinders with a non-adjustable velocity fuse, a continuous rear hinge assembly, full operating range telescoping side guards, zinc plated hinge rods, a self-cleaning lip hinge, and an exclusive lip lug and header plate design.
more information coming soon
NORDOCK® Hydraulic Dock Leveler | Constructor™ Series

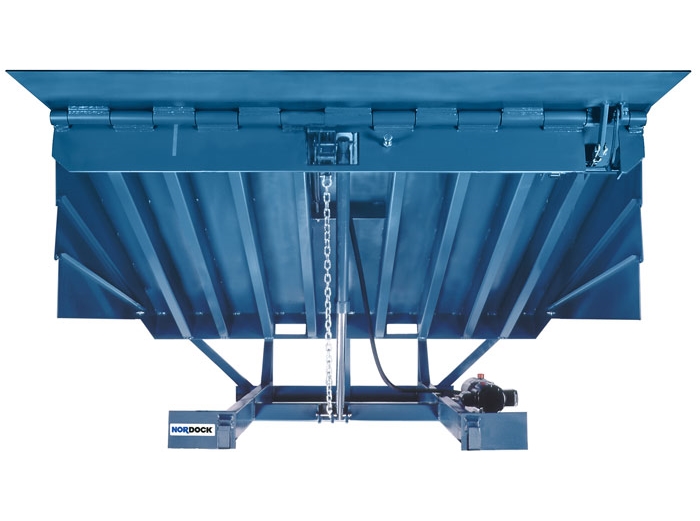

The NORDOCK® Constructor™ Series Hydraulic Dock Leveler, exclusively designed for the construction industry, is a key development for strength, dependability, simple operation, and easy installation. This cost-effective Series is available in 25,000 to 45,000 lb. capacities, that is, capacities in standard nominal sizes of 6 and 7 feet wide by 6 and 8 feet long. Easy cleaning of the pit area is provided the open-frame design.
Tough construction for extended trouble-free operation

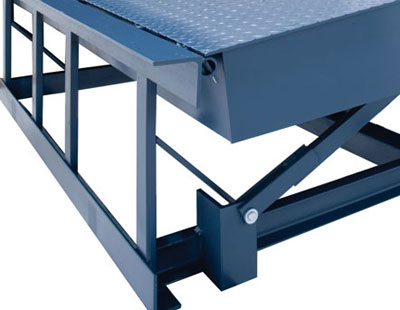

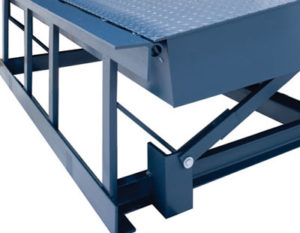

The platform is a cohesive welded structure with continuous welds at the header plant, hinge tubes, and beam and 33% dual side beam to deck weld pattern. The lip plate, deck plate, and beam section and lugs are constructed of minimum 50,000 – 55,000 PSI yield material. Four inches of side-to-side tilt with no pinch point is provided by the fixed rear hinge.

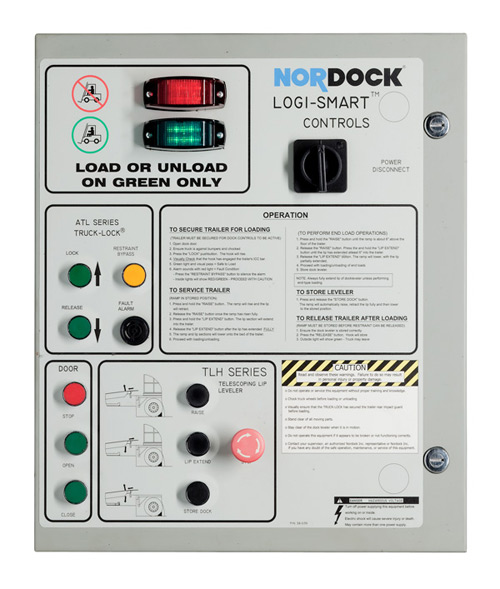

Simple one-step dock leveler push button control
By pressing the control button, the operator raises the deck until the lip is completely extended. The lip is lowered onto the truck bed by releasing the button. The operator presses the control button until the lip completely retracts to store the leveler.
NORDOCK CONSTRUCTOR™ Series Hydraulic Leveler
Features:
- Heavy Duty Hydraulics
- Patented Dual Function Cylinder
- Dual Side 33% Beam to Deck Weld Pattern
- High Tensile Lip and Deck Safety Tread Plate
- Open Frame Design for Simple Pit Cleaning
- Seven Rear Structural Frame Supports
- Fixed Rear Hinge Provides Easy Transfer & Eliminates Pinch, Trip or Impact Point.
- Full Range Telescoping Side Guards
- Quick Cycle Time Hydraulics
- Full Width Rear Hinge Rod
- Dust Tight Control Panel Enclosure.
- Integral Maintenance Support
- Black and Yellow Striping on Deck Skirts
- Two Dock Bumpers Included
- Security Night Locks
Options:
- Center Deck Reinforcement – Required when three wheel fork lifts are used
- Emergency Stop Control
- Grease Fittings on Front Hinge
- Automatic Return to Dock Level
- Zinc Plated Hinge Rods
- 18” or 20” Long Lip
